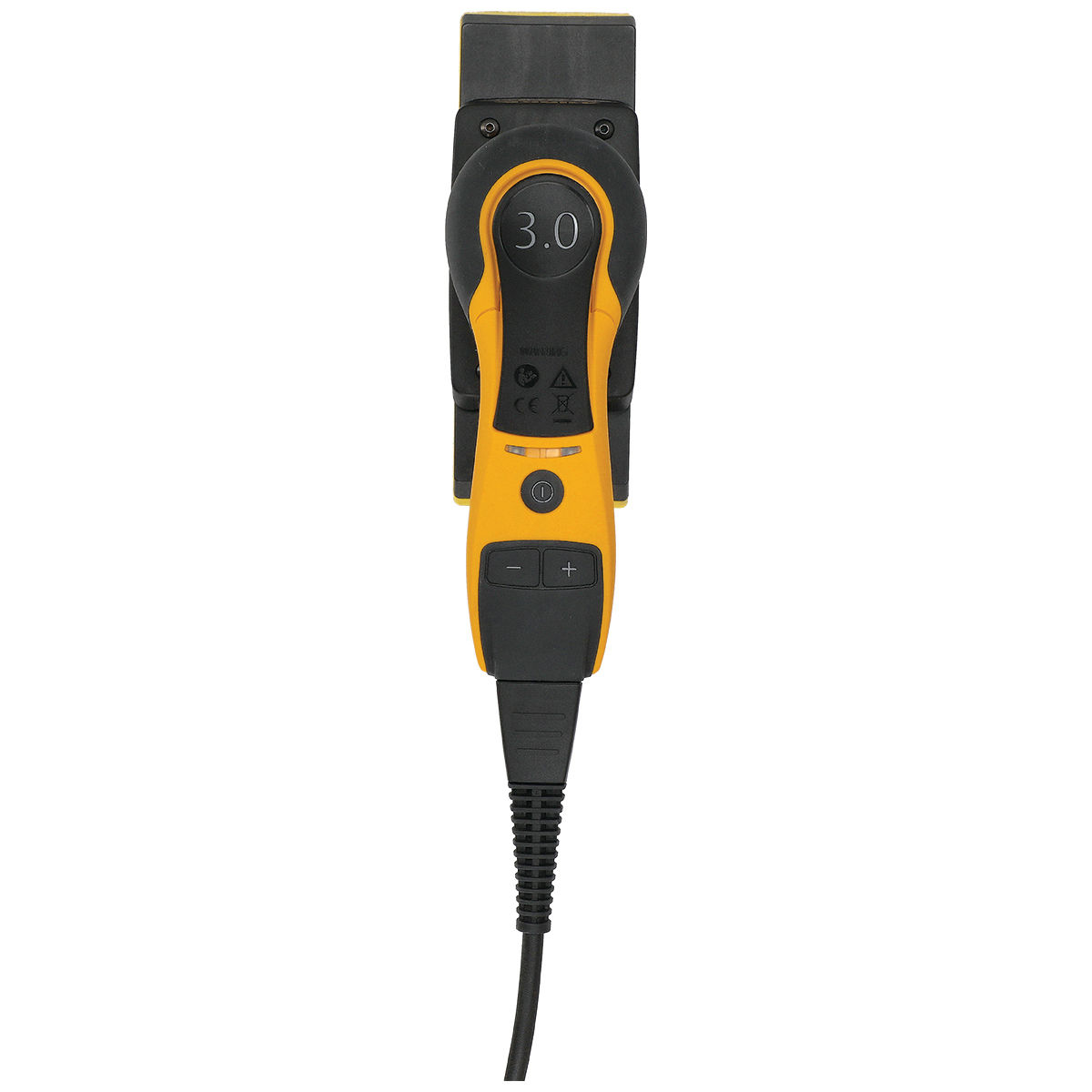

Mirka® DEOS 383CV EU 70 x 198 mm 3.0 mm orbit

Mirka® DEOS 383CV is a powerful and compact direct electric orbital sander. At only 10 cm high, the tool’s compact size and optimized ergonomics give it high manoeuverability and help deliver a precise and efficient sanding performance in comfort. This small and light sander is naturally equipped with a brushless motor, and speed is easily controlled via a lever. There is also a separate on/off switch for easy and safe handling. Mirka® DEOS features an integrated vibration sensor and Bluetooth low energy technology. The vibration sensor makes it possible to monitor the current vibration level through the myMirka app - daily vibration exposure can be accessed via an in-app purchase. The compact dimensions make Mirka® DEOS 383CV ideal for body filler and primer sanding applications. In combination with Mirka's net abrasives, the tool offers fast, efficient and dust-free sanding performance.

Use for

Sanding

Technical details

Connectivity
Bluetooth
Dust System
Central vacuum ready
Max Speed (rpm)
10000 rpm
Min Speed (rpm)
5000 rpm
Noise Level, LpA (dB)
71.0 dB
Orbit
3 mm
Orbit Type
Orbital
Pad Length
198 mm
Pad Width
70 mm
Plug Type
EU
Power Input (W)
250 W
Vibration Level (m/s²)
2.6 m/s²
Voltage Supply (VAC)
220-240 VAC
Weight
1 kg

Downloads

PDF

Manual - Mirka® DEOS 230V

PDF

Mirka® DEOS Leaflet

PDF

Exploded view - Mirka® DEOS 353CV and 383CV
