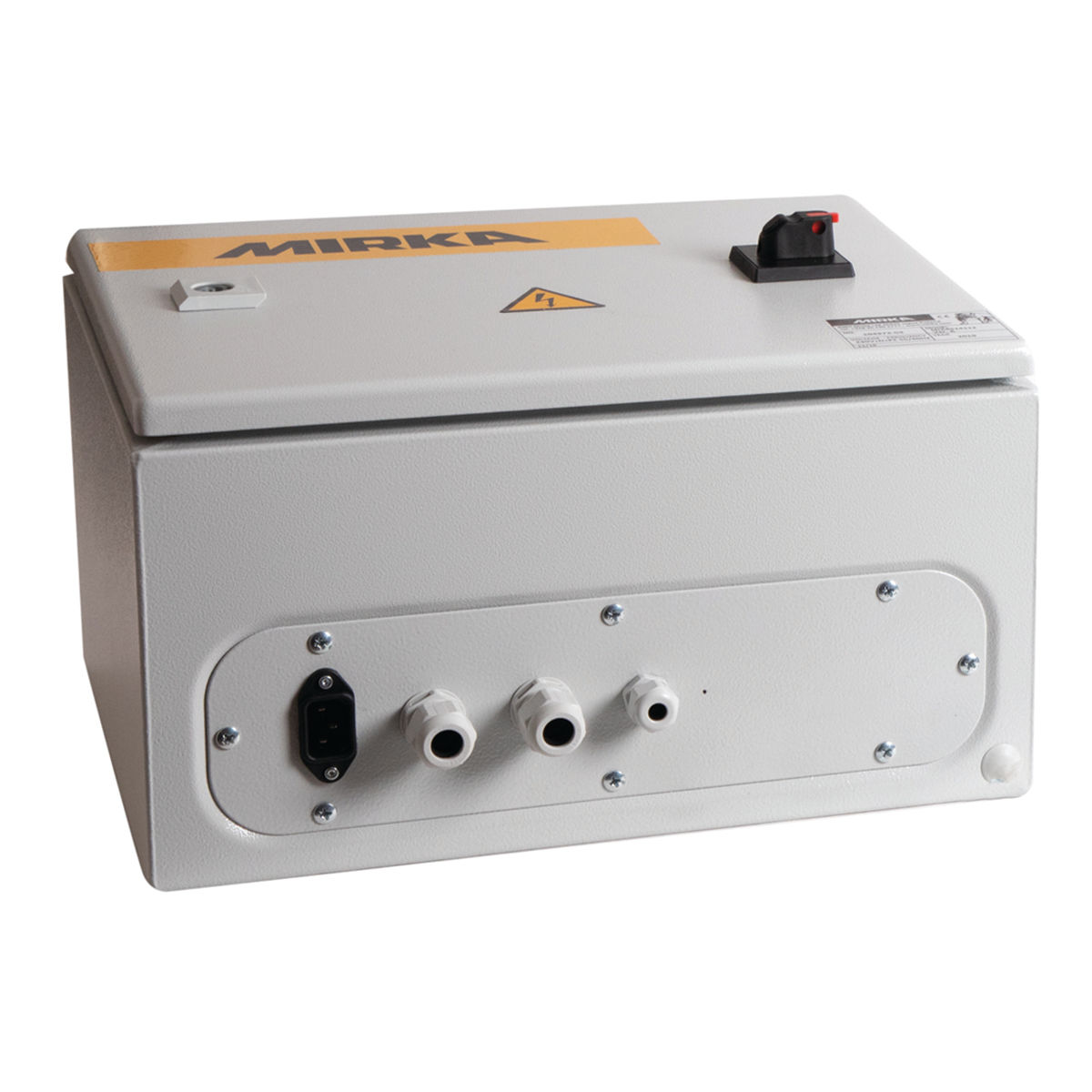

Mirka® motor drive cabinet for PROFINET
Motor drive cabinet for combining Mirka robotic tools with PROFINET communication interface.
Motor drive cabinet for combining Mirka robotic tools with PROFINET communication interface.
Technical data:
Nominal input voltage: 48 VDC
Input voltage range: 100–240 VDC
Maximum input current: 10 A
Rated power: 480 W
Speed range 1,000–10,000 rpm
Overload protection: Yes
Overheat protection: Yes
Ambient temperature 0–40 °C
Humidity: Maximum 95% RH, non-corrosive, no dripping water
Storage temperature: -20 to 80 °C
IP Class: IP40
