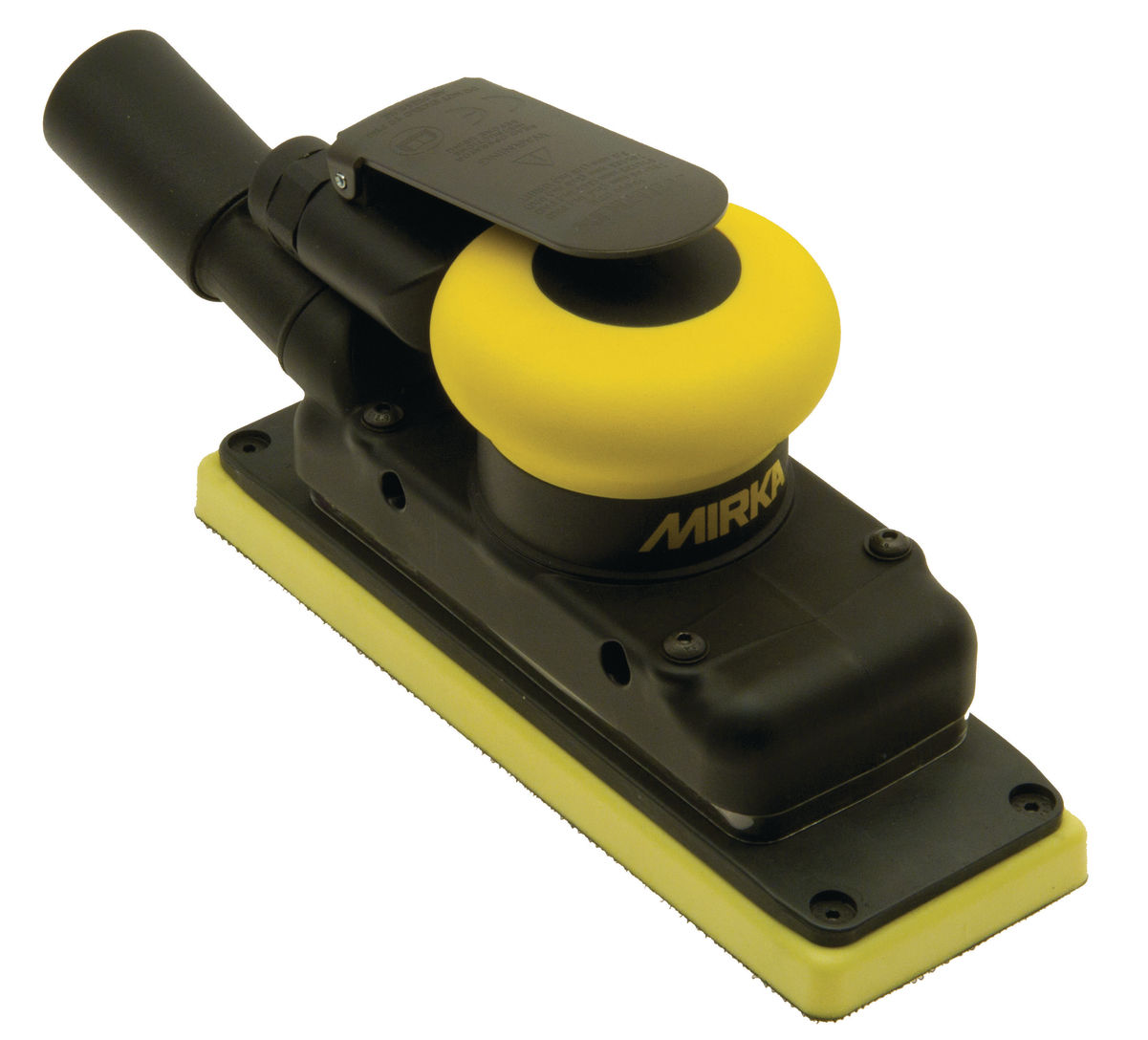

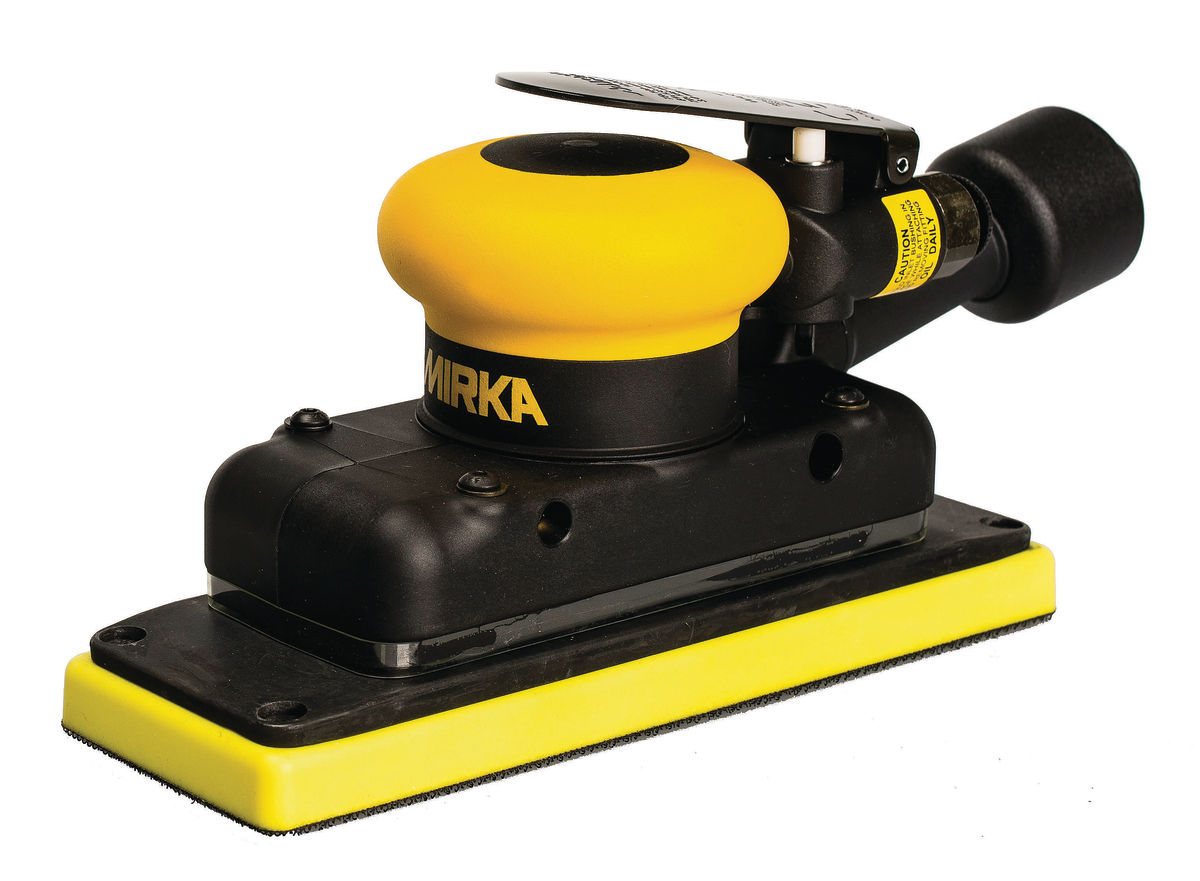

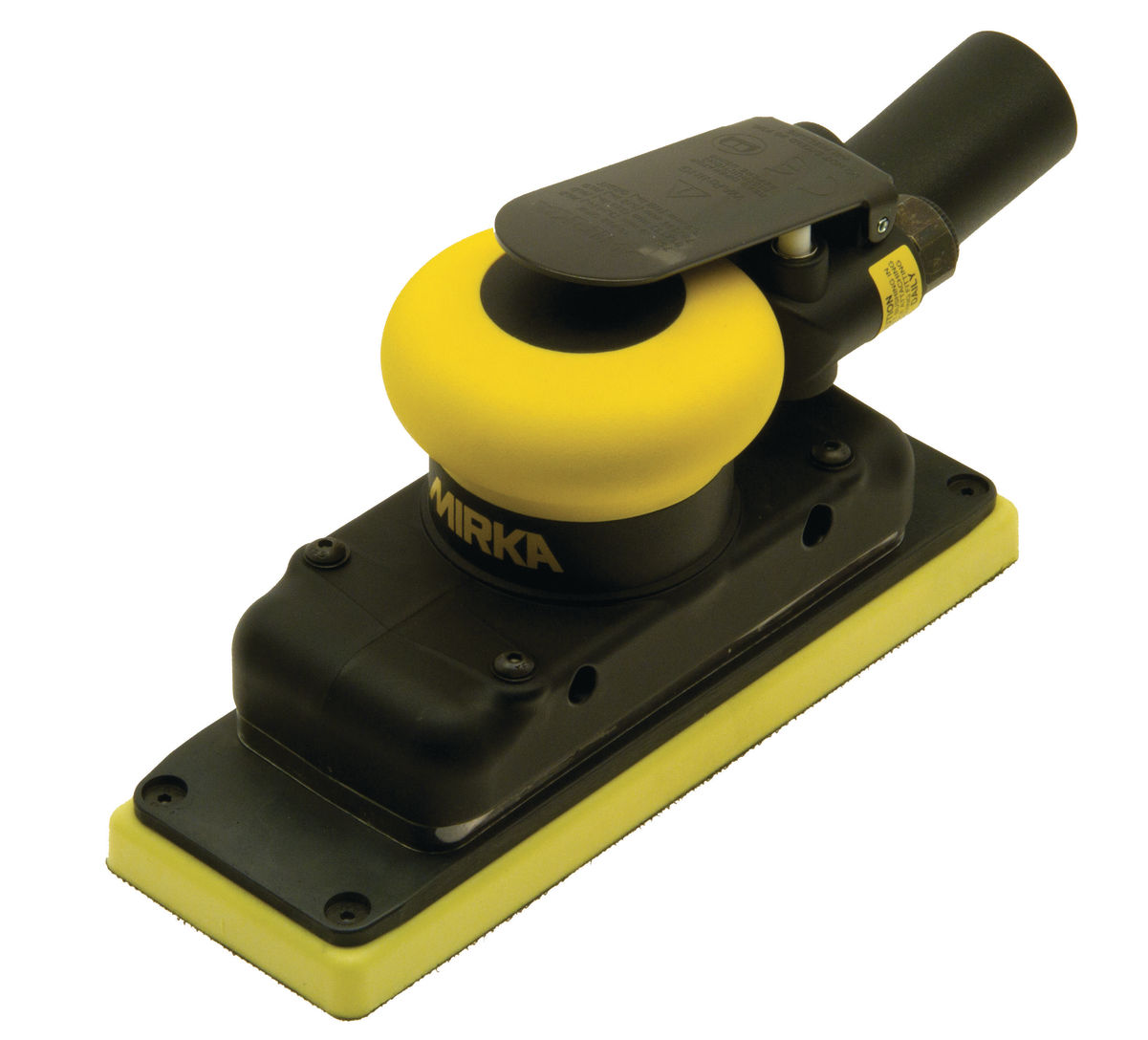

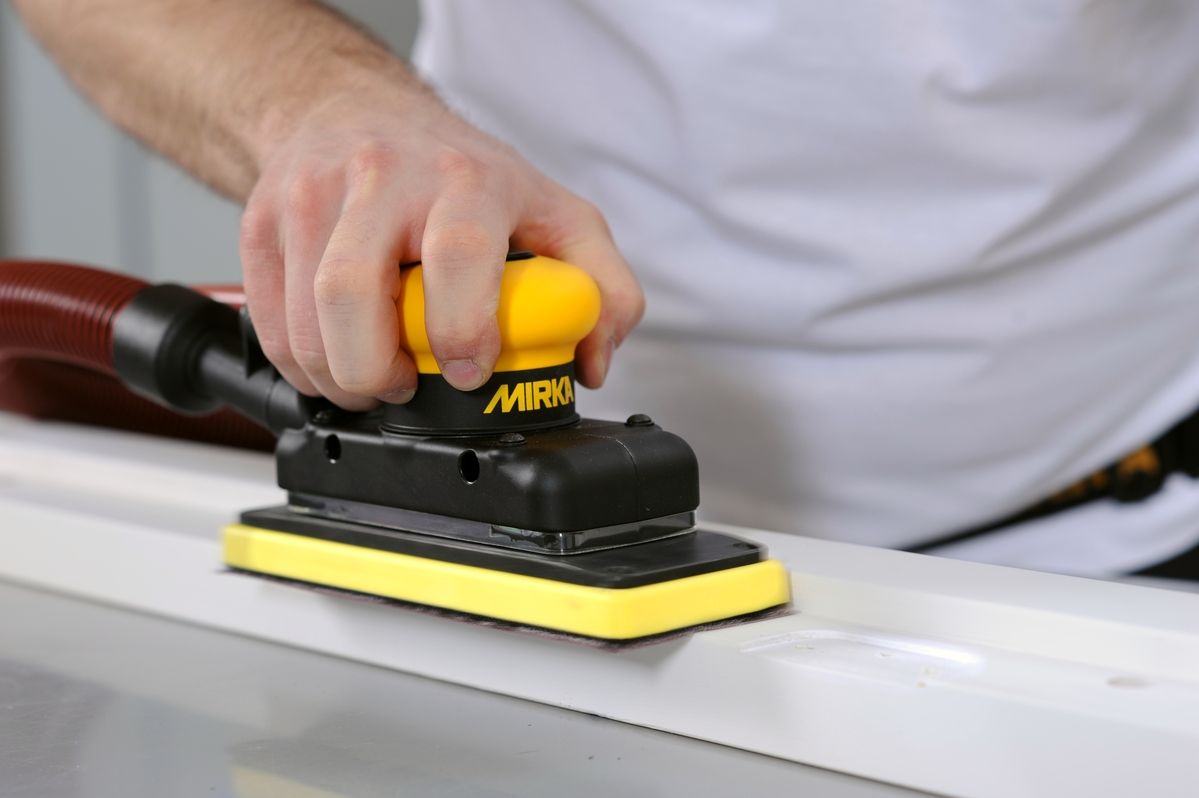

Mirka® OS 383CV 70 x 198 mm Central Vacuum 3.0 mm orbit

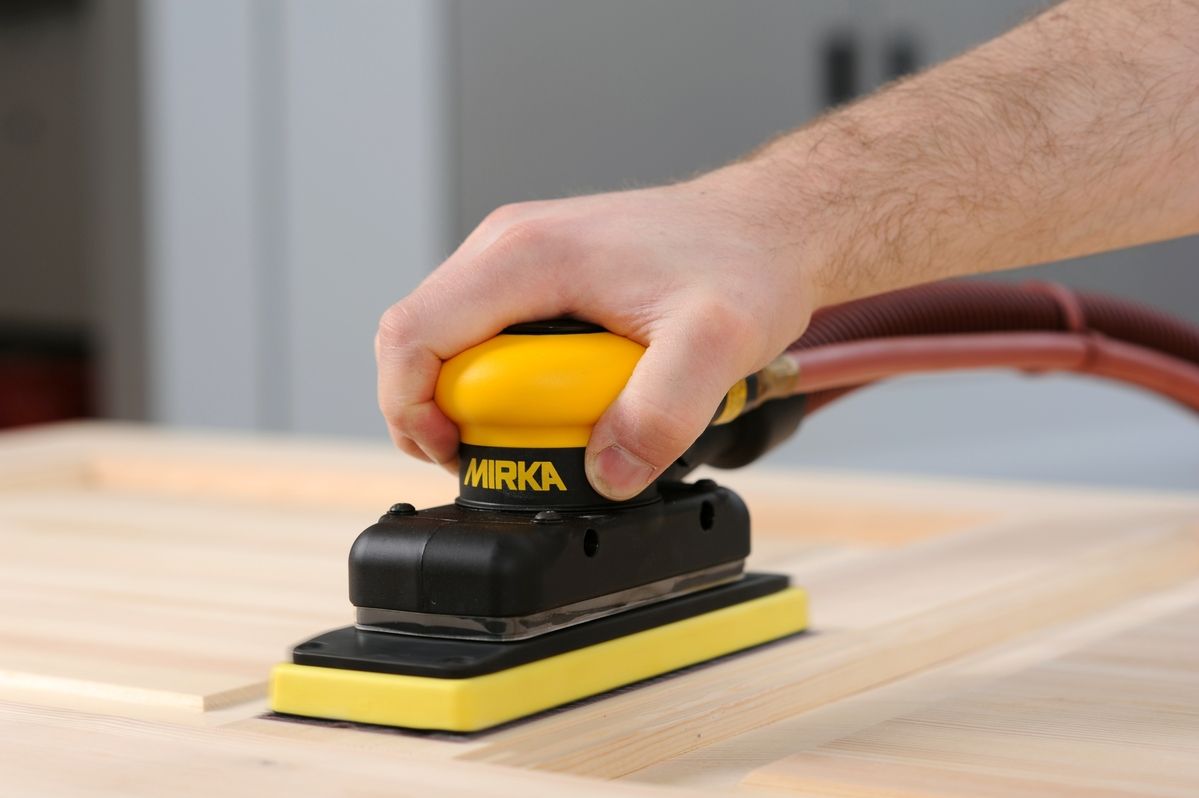

MIRKA® OS 383CV (Central Vacuum) is recommended for various applications, such as wood and body filler as well as primer and lacquer sanding. This Orbital Sander with the dimension of 70 x 198 mm is recommended to use on small and medium size areas. The 3.0 mm orbit guarantees a good surface finish.

Použít pro

Sanding

Technické údaje

Dust System
Central vacuum ready
Max Speed (rpm)
10000 rpm
Noise Level, LpA (dB)
75.0 dB
Orbit
3 mm
Orbit Type
Orbital
Pad Included

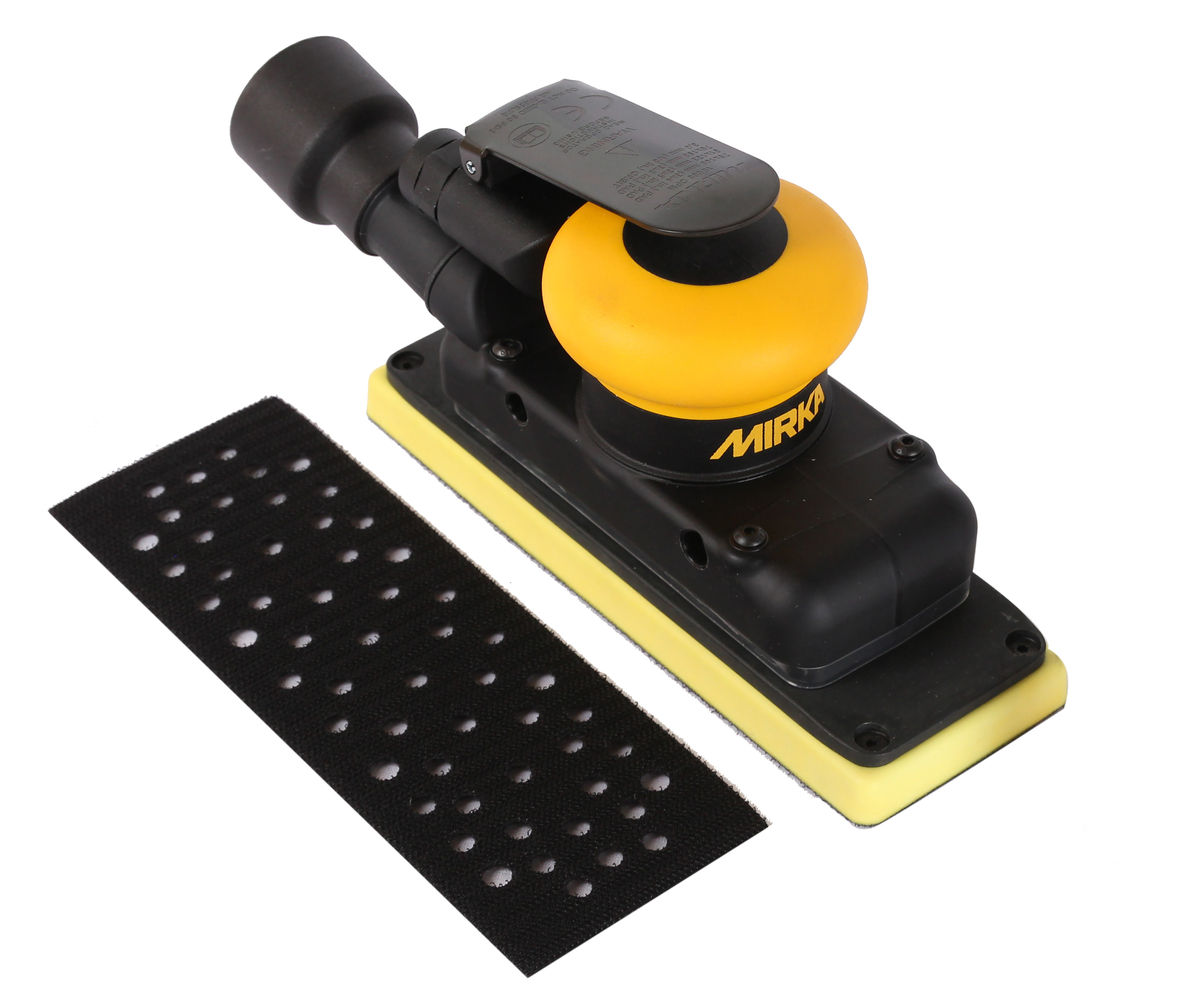

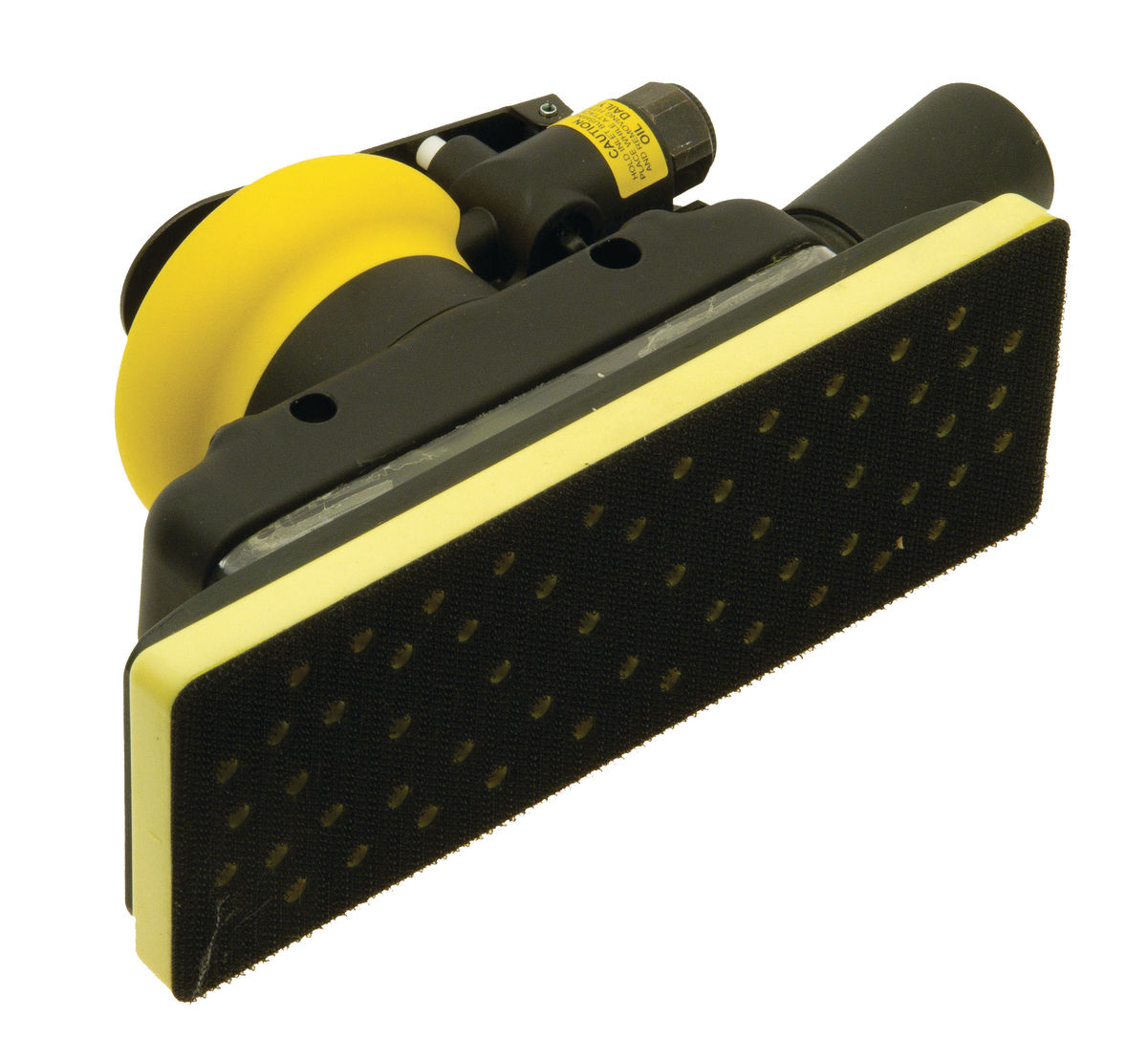

70 x198 mm Velcro 56 H + Pad Saver
Pad Length
198 mm
Pad Width
70 mm
Vibration Level (m/s²)
3.3 m/s²
Weight
0.96 kg
Work Pressure (bar)
6.2 bar
General Product Safety Regulation symbols

Ke stažení

PDF

Exploded view - Mirka® OS383

PDF

Brochure - Tools for Sanding & Polishing

PDF

Manual - Mirka® OS
