Mirka® AIOS 353CV

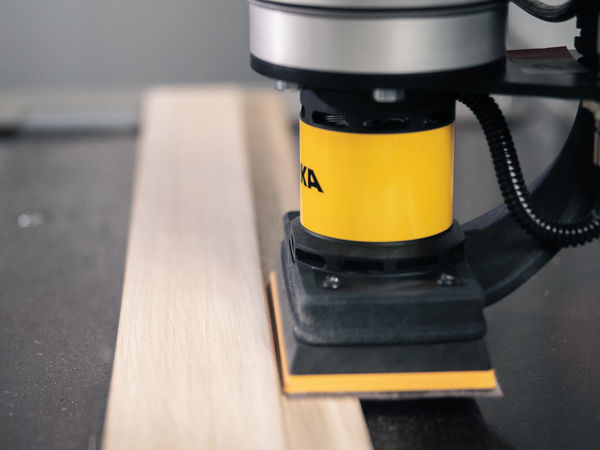

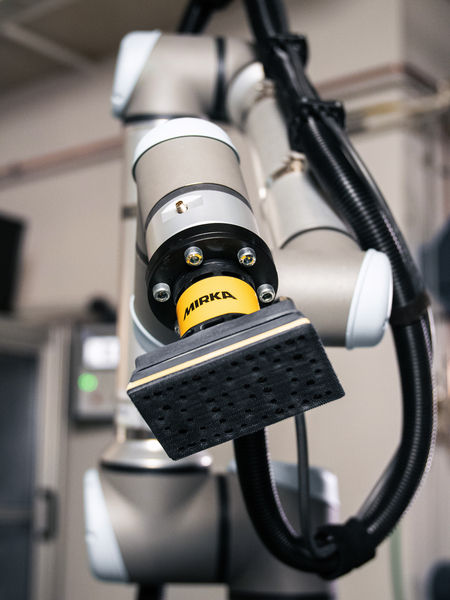

The Mirka® AIOS (Automated Industrial Orbital Sander) is an advanced electric sanding head for robot usage. Rectangular sanding pad engineered especially for the wood sector, for sanding corners as well as surfaces. In applications such as manufacturing furniture, doors and windows, the AIOS 353CV can be used to drive up productivity and finishing quality with robotic precision. Mirka® AIOS is an electric and smart sander, built inside a sturdy yet light aluminium housing, featuring an ISO 9409-1 compatible flange for mechanical robot coupling. It can be adapted to fit all mechanical couplings, offering maximum flexibility. The long-life, brushless motor is extra safe for wet sanding, and it runs on constant and configurable RPM. This model has a 81mm x 133mm sized pad and is to be connected to a dust extraction system.

Technical details

Dust System
Central vacuum ready
Max Speed (rpm)
10000
Min Speed (rpm)
5000
Orbit
3 mm
Orbit Type
Orbital
Pad Length
133 mm
Pad Width
81 mm
Power Input (W)
350
Weight
1.2 kg

Downloads

PDF

Leaflet Mirka® AIOS 353CV

PDF

Manual Mirka® AIOS 353CV

VIDEO

Video Mirka® AIOS 353CV
