Mirka OS 343CV 75x100mm Central Vacuum Orbit 3,0
MirkaCode
:
8991600111

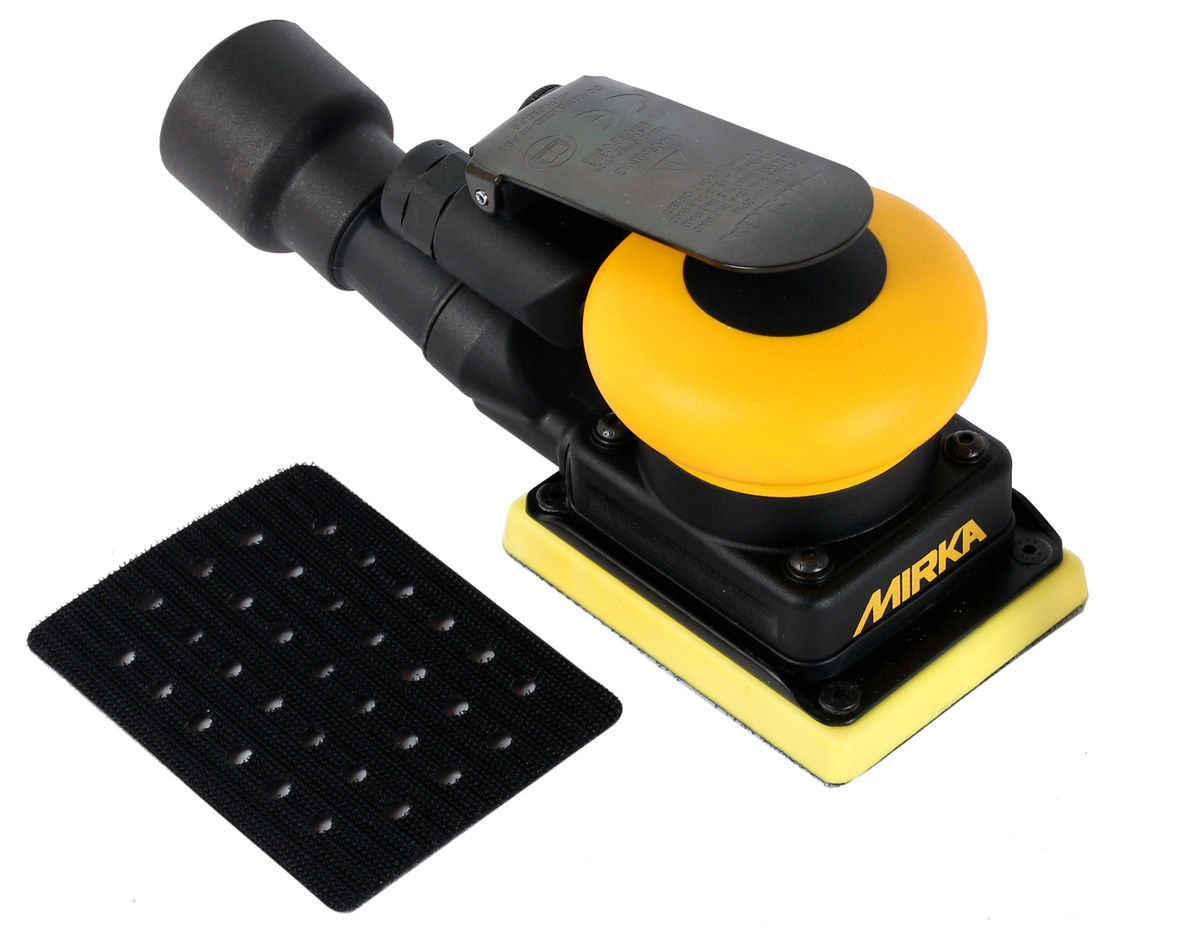

MIRKA® OS 343CV (Central Vacuum) is an ergonomic and lightweight pneumatic orbital sander, ideal for smaller sanding jobs within the window and furniture production. MIRKA® OS 343CV sander is easy to use with Abranet sheets or 75 mm rolls and when connecting the sander to a dust extraction system you are able to sand dust-free. The 3.0 mm orbit guarantees a good surface finish.
MORE INFORMATION
Technical Specifications
Power (W)
179
Power input (W)
Speed (rpm)
10000
Weight (kg)
0.72
Noise Level, LpA (dB)
72
Vibration level (m/s²)
2.8
Packaging
Cardboard box
Model name
Mirka OS 343CV
Dust system
Central vacuum ready
Product class
Pneumatic tool
RELATED PRODUCTS
Hose 27mm x 5,5m with Integrated Pneumatics
MirkaCode
:
8992514511
Hose 27mm x 0,5m + Connector
MirkaCode
:
8999804111
Pad Saver 75x100mm 33H, 5/Pack
MirkaCode
:
8299102011
Backing Pad 75x100mm Grip 33H Medium
MirkaCode
:
8295340111
MACHINE SPARE PARTS
Show
Air Inlet Kit MPA0798
MirkaCode: 8993018811
Bearing Kit MPA0807 for OS343
MirkaCode: 8993019611
Cylinder+O-Ring Kit MPA0994
MirkaCode: 8993009211
Endplate Bearing Kit MPA0799
MirkaCode: 8993019811
Front Endplate MPB0016
MirkaCode: 8993009411
Lock Ring+O-Ring Kit MPA0993
MirkaCode: 8993007911
Muffler Kit MPA0805 10000 rpm
MirkaCode: 8993017211
Pad Backing MPB0101 for OS 343
MirkaCode: 8991600811
Pad Support for OS 343/DEOS
MirkaCode: 8991600411
Rear Endplate MPB0017
MirkaCode: 8993009311
Rotor, Vanes and Key kit MPA0801
MirkaCode: 8993017711
Speed Valve kit MPA0800
MirkaCode: 8993019011
Swivel 19mm Fitting Kit MPA1239 for OS CV
MirkaCode: 8991600211
AVAILABLE DOCUMENTS
Exploded View
Machine Manual
